Iboard Factory Direct 75inch Lockable Recoardable Interconnected
Blackboard Portable Smart Whiteboard Interactive Flat Panel Display
All In One With Stand Support Marker Pen Chalk Writing education
solution

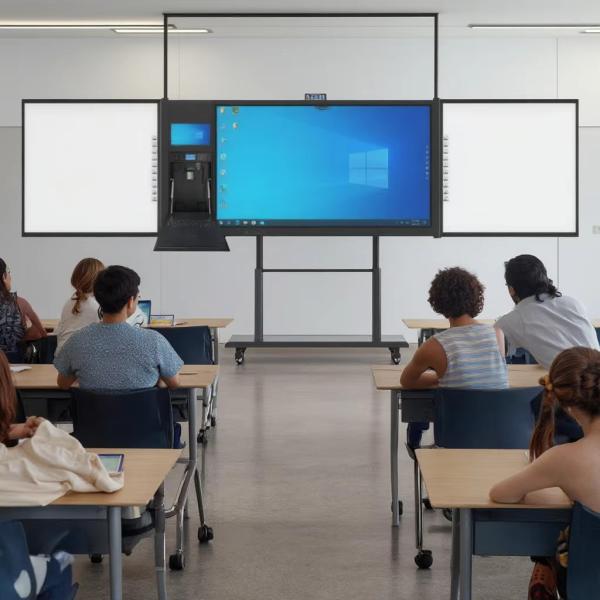

Interconnected interactive whiteboard Combined highly integrated interactive whiteboard or Black
board(Side boards)+ IFPD to achieve dual board interconnection and
interactive function.
All in one whiteboard/ IFPD
Highly integrated with multi-point infrared interactive whiteboard,
central control system, wireless microphone, stereo amplifier
system, OPS and other equipment, forming a perfect multi-media
classroom solution together with a projector.
White board
It can be written with any ordinary whiteboard pen,chalk and
dustless chalk without damaging the surface and has strong wear
resistance.
With our intelligent board, teachers can use electronic green board
for annotation. It supports to save the annotation of the green
board, forming the combination of intelligent teaching and
traditional blackboard writing.
The writing on the right green board can be saved as screenshot
according to the requirements of teachers,so as to send them to
students as review materials.
Two Options:
-Size support: 75 inch+ 2 side boards , length around 4.3m , side
board surface nano( black board) for chalk writing, ceramic( white
board) for marker writing, it can be foldable. Built in Andriod,
with Windows system for Recordable function, it's a powerful Smart
board. It also come with mobiel stand, support portable moving from
classroom to classroom.
-Smart board 75/86/98 inch, built in android, with ops slot for
windows optional. With Black/ Green board for chalk writing,
whiteboard for Marker pen writing. ABA version or AB version, it's
wall mounted, fixed on the wall, length around 4.2~4.4m.
Specification
| Appearance | To match with the main display unit |
| Size | Customized as per the height of main display unit |
| Surface Selection | Whiteboard/Greenboard |
| Touch Technology | Infared touch |
| Touch method | Finger, Pointer or any other opaque object |
| Touch | Support Touch ON/OFF via hotkey |
| Gesture Recognition | Support |
| File Saving | Support saving files as PPT/Word/PDF/image format. |
| Touch Point | 20 for Android. |
| Cursor Speed | 180 dot /s |
| Touch Resolution | 32768x32768 |
| Effect Touch Object Size | >8mm |
| Touch Method | Finger or Pen |
| Positioning Accuracy | <2mm |
| Touch lifetime | More than 60,000,000 single touch or click |
| Connecting Port | USB 2.0 |
| Operating System | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows
8.1,Windows 10, Linux, Mac, Android |
| Power Supply | USB power supply DC 4.6V- 5.0V <1W ( 200mA at 5V) |
| Working Condition | Indoor or Outdoor |
| Storage | Temperature: -30°C~60°C Humidity: 0%~95% |
| Operation | Temperature: -10°C~45°C Humidity: 10%~90% |
