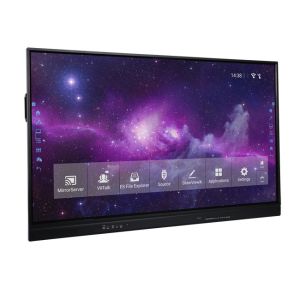

Interactive Touch Screen Whiteboard
Interactive display for training, writing annotation, camera display,
connecting to an external PC, playing multimedia audio and video.
Ultra Slim Frame, with the newe ultra-slim frame design and modern
styling frame width is only 2.04cm, maximising the area used for
touch input and displaying vibrant content.
High-speed multi-point interactive touch technology supporting up
to 20 touch points. Using the best Infrared touch sensors,
interactions are smooth and fast.
OPS PC module compliant solt support the Intel OPS(Open Pluggable
Specification) standard allowing users to add PC level
functionality with ease. (It is optional for customers, need extra
cost.)
TE-QS
New generation Intelligent Multi-Touch Meeting Monitor
SPECIFICATION:
| Model | TE-QS-55 | TTE-QS-65 | TE-QS-75 | TE-QS-86 |
| Dispaly Backlight | D-LED Backlight |
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | 3840*2160 |
| Brightness | 350 cd/㎡ | 350 cd/㎡ | 350 cd/㎡ | 350 cd/㎡ |
| Contrast | 1200:1 | 1200:1 | 1200:1 | 1200:1 |
| Screen Size(mm) | 1210.6*682.4mm | 1428,5x803,5mm | 1650x928mm | 1895,04x1065,96mm |
| Aspect Ratio | 16:9 |
| View Angle | 178° |
| Screen Mode | 16:9/4:3/dot to dot/full screen |
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors |
| Panel Response Time | 8ms | 8ms | 8ms | 8ms |
| Suport Resolution | 4K Ultra HD 3840x2160 |
Android Specification | Android 8.0 |
2 x ARM Cortex-A73@1.5GHz 2 x ARM Cortex-A53@1.5GHz |
| ARM Mali-G51450MHz |
| 2.4 and 5.0GHz WiFi; |
| Ram: 4G |
| Storage: 32G |
| Full support for Full HD and 4K relosution (with OPS slot working
with 4k 60Hz); |
| The file manager is supported |
| Screen sharing aplication is supported |
| Local and online supportfor music player. |
| Input Ports | HDMI 2.0 x2; HDMI 1.4 x1; VGA x1; VGA Audio-In x1; YPBPR x1; AV x1; USB 3.0 x1;USB 2.0 x1; RJ45 x1; SD Card Reader x1; Touch USB port
x2; OPS slot x 1; RS232 x1; USB2,0(for Android and PC) x 3; Display
Port x1 |
| Output Ports | AV-Out x1; Headphones out; SPDIF x1; HDMI output |
| Front Button (65” 75” 86”) | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME |
| Front Button (55”) | one power button in the central bottom |
| Speakers | 2x 15w |
| Voltage | AC(100～240)V-50/60HZ |
| Power Range | Standby Power<1W | Standby Power<1W | Standby Power<1W | Standby Power<1W |
| Rated Power<150W | Rated Power<230W | Rated Power<350W | Rated Power<415W |
Touch Parameter | Touch Technology | Infared Touch |
| Touch Points | 20 touch points |
| Writing Mode | Finger or any opaque object |
| Accuracy | <2mm |
| Response Time | 5ms |
| Cusor Speed | 180 dot/s |
| Connection Port | USB 2.0, USB 3.0 |
| Operating System | Windows/Linux/Mac/Android |
| Working Temperature | 0℃-40℃ |
| Accessories | Magnetic Pens*2, HDMI Cable*1, Touch USB cable, Power Cable*1,
whiteboard Software *1, Remoter*1, Wall mounting bracket VESA:
400x400 for55", 500x400 for 65”, 600x400 for 75", 750x400 for 86" |
| Sizes(mm) | 1263*780*86.4 | 1486*905*93.2 | 1707.4*1030.1*93.3 | 1953.6*1168.8*93.4 |
| Weights (kgs) | 35/ 46 | 41 / 54 | 54 / 71 | 70/ 88 |
Carton Sizes (mm) (LxHxW ) | 1385x 920x 194 | 1646x1074x240 | 1873x1204x240
| 2120x1353x240
|
Newly designed model,good outlooking and wide view angle,bring a
different new visual experience for presentation.
Fast and high accuracy infrared Multi-touch,smooth writing and
convenient finger-guesture erasing. Built-in HD remote-distance
meeting system, support up to 4 remote meeting devices to join
meeting Support scan QR code of the whiteboard software to share
the meeting records by mobile devices.

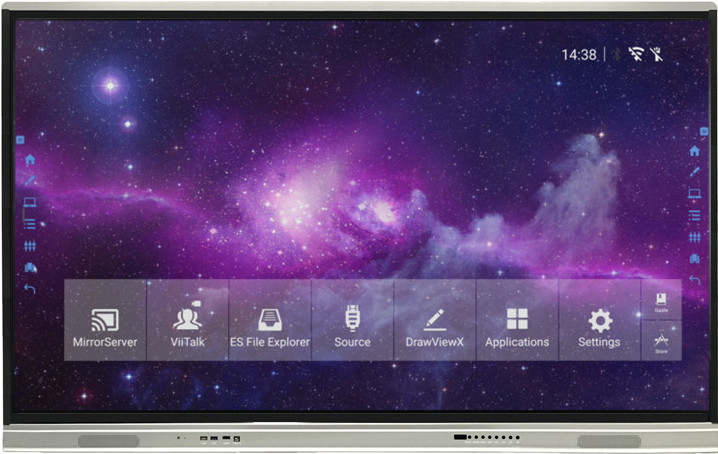

Dual System Supporting. Support Android and Windows dual system,
each system can be operated and managed separately, elegant
simplified UI interface for Android, can select the required
functions quickly,configured with DrawView X annotation software,
can quickly write down handwriting with real writing feeling.
