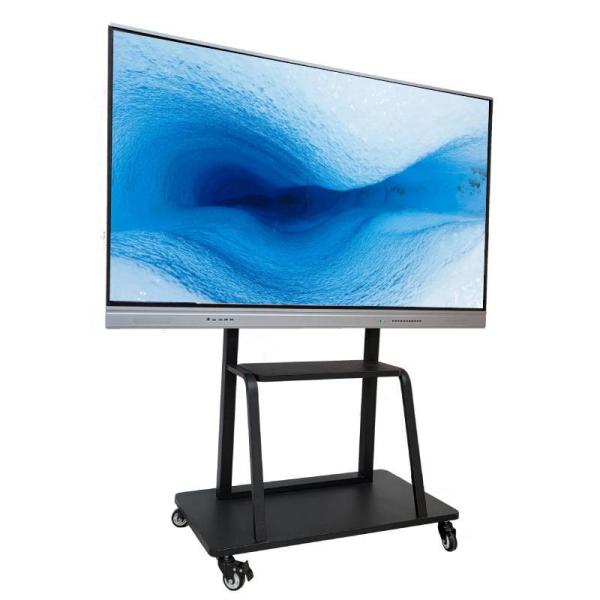

IR Interactive Touch Monitor 65" 75" 86" 98" For Smart Classroom
Ⅰ. Description Of interactive touch monitor
A IR interactive touch monitor is a computer driven device,
allowing users to access and manipulate electronic files by means
of a LCD display. The interactive LCD will be connected to a
computer with USB, and the computer then connected back to the LCD
with a video cable.It is as known as interactive screen,
interactive whiteboard, smart whiteboard, touch screen display,
touch monitor, LED touch monitor, touch interactive display,
interactive flat panel display, touchscreens , etc.
Our company has a strong R&D team and our interactive touch
monitor is independently developed and produced, integrates LED
display, computer, speaker, electronic whiteboard, TV and other
functions in one.
II. Our Strength:
14 years' experience on making OEM/ODM interactive touch monitor
and digital interactive whiteboard
products sold to more than 80 countires in the world
Own developed Infrared technology
ODM/OEM Support
SKD support
Customized size
Easy for after-sales service
Shortest delivery time
Top quality in this field
Best Value
II. Product Advantage Feactures
With three side ultra slim bezel, the bezel width is only 10mm,
adding the black edge of display area, only 20mm.
With non-air gap (zero gap) glass design, make writing experience
very good and actual visual angle wider...
III. Specification
| Model | TE-YL5C-65 | TE-YL5C-75 | | TE-YL5C-86 |
| Dispaly Backlight | D-LED Backlight |
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 |
| Brightness | 350 cd/㎡ | 350 cd/㎡ | 350 cd/㎡ |
| Contrast | 1200:1 | 1200:1 | 1200:1 |
| Screen Size(mm) | 1428.5*803.5 | 1649.7*927.9 | 1895.04*1065.96 |
| Aspect Ratio | 16:9 |
| View Angle | 178° |
| Screen Mode | 16:9/4:3/dot to dot/full screen |
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors |
| Panel Response Time | 8ms | 8ms | 8ms |
| Suport Resolution | 1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60HZ |
Android Specification | Android 8.0 |
2 x ARM Cortex-A73@1.5GHz 2 x ARM Cortex-A53@1.5GHz |
| ARM Mali-G51450MHz |
| Ram: 4G |
| Storage: 32G |
| I/O Ports | Please contact us to know more detail specification |
| Front Button | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME |
| Built in camera | 8 Mega Pixels |
| Built in Microphone | 4 array built in microphones |
| Voltage | AC(100～240)V-50/60HZ |
| Power Range | Standby Power<1W | Standby Power<1W | Standby Power<1W |
| Rated Power<230W | Rated Power<350W | Rated Power<415W |
Remark: For more details of the specification , please contact us
to know more detials.
