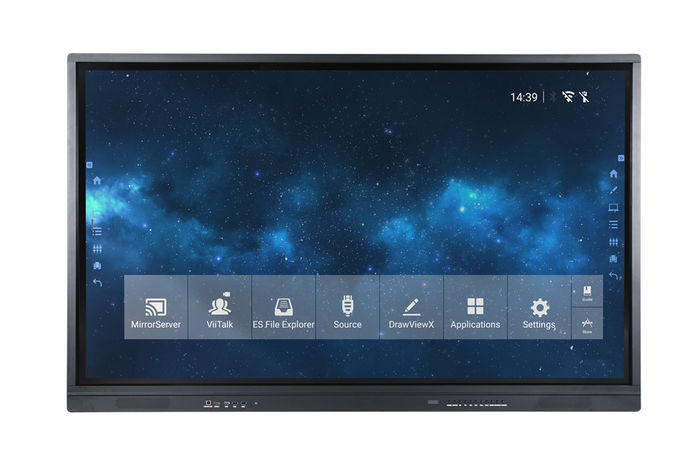

Product name: Finger smart ir touch interacive display touch screen
electronic interactive whiteboard display
Ⅰ. Description Of Touch interactive display
A LCD Touch interactive display is a computer driven device,
allowing users to access and manipulate electronic files by means
of a LCD display. The interactive LCD will be connected to a
computer with USB, and the computer then connected back to the LCD
with a video cable.It is as known as interactive screen,
interactive whiteboard, smart whiteboard, touch screen display,
touch monitor, LED touch monitor, touch interactive display,
interactive flat panel display, touchscreens , etc.
We have a strong R&D team and our IFPD is independently
developed and produced, integrates LED display, computer, speaker,
electronic whiteboard, TV and other functions in one.
II. Our Advantage:
14 years' experience on making OEM/ODM interactive flat panels and
interactive whiteboard
products sold to more than 80 countires in the world
Own developed Infrared technology
ODM/OEM Support
SKD support
Customized size
Easy for after-sales service
Shortest delivery time
Top quality in this field
Best Value
| Model | TE-TL-65 | TE-TL-75 | | TE-TL-86 |
| Dispaly Backlight | D-LED Backlight |
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 |
| Brightness | 350 cd/㎡ | 350 cd/㎡ | 350 cd/㎡ |
| Contrast | 1200:1 | 1200:1 | 1200:1 |
| Screen Size(mm) | 1428.5*803.5 | 1649.7*927.9 | 1895.04*1065.96 |
| Aspect Ratio | 16:9 |
| View Angle | 178° |
| Screen Mode | 16:9/4:3/dot to dot/full screen |
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors |
| Panel Response Time | 8ms | 8ms | 8ms |
| Suport Resolution | 1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60HZ |
Android Specification | Android 8.0 |
2 x ARM Cortex-A73@1.5GHz 2 x ARM Cortex-A53@1.5GHz |
| ARM Mali-G51450MHz |
| Ram: 4G |
| Storage: 32G |
| I/O Ports | Please contact us to know more detail specification |
| Front Button | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME |
| Built in camera | 8 Mega Pixels |
| Built in Microphone | 4 array built in microphones |
| Voltage | AC(100～240)V-50/60HZ |
| Power Range | Standby Power<1W | Standby Power<1W | Standby Power<1W |
| Rated Power<230W | Rated Power<350W | Rated Power<415W |
Touch Parameter | Touch Technology | Infared Touch |
| Touch Points | 10/20 touch points |
| Writing Mode | Finger or any opaque object |
| Accuracy | <2mm |
| Response Time | 4~8ms |
| Cusor Speed | 180 dot/s |
| Connection Port | USB(full speed) |
| Operating System | Windows/Linux/Mac/Android |
| Working Temperature | 0℃-40℃ |
Remark: For more details of the specification , please contact us
to know more detials.
